ATEX Z1 Keyboard

ATEX/UKEX KEYBOARD :
Typical ex Code	II 2 G Ex ia IIC T4
Degree of protection	IP66
Use	within Zone 1 & 2 and Ex area
Technical details	Rafi short stroke keyboard No of keystrokes 1 Mio operations using a force of 2.55 to 0.65 N Travel 0, 3 0, 2-0, 1 mm

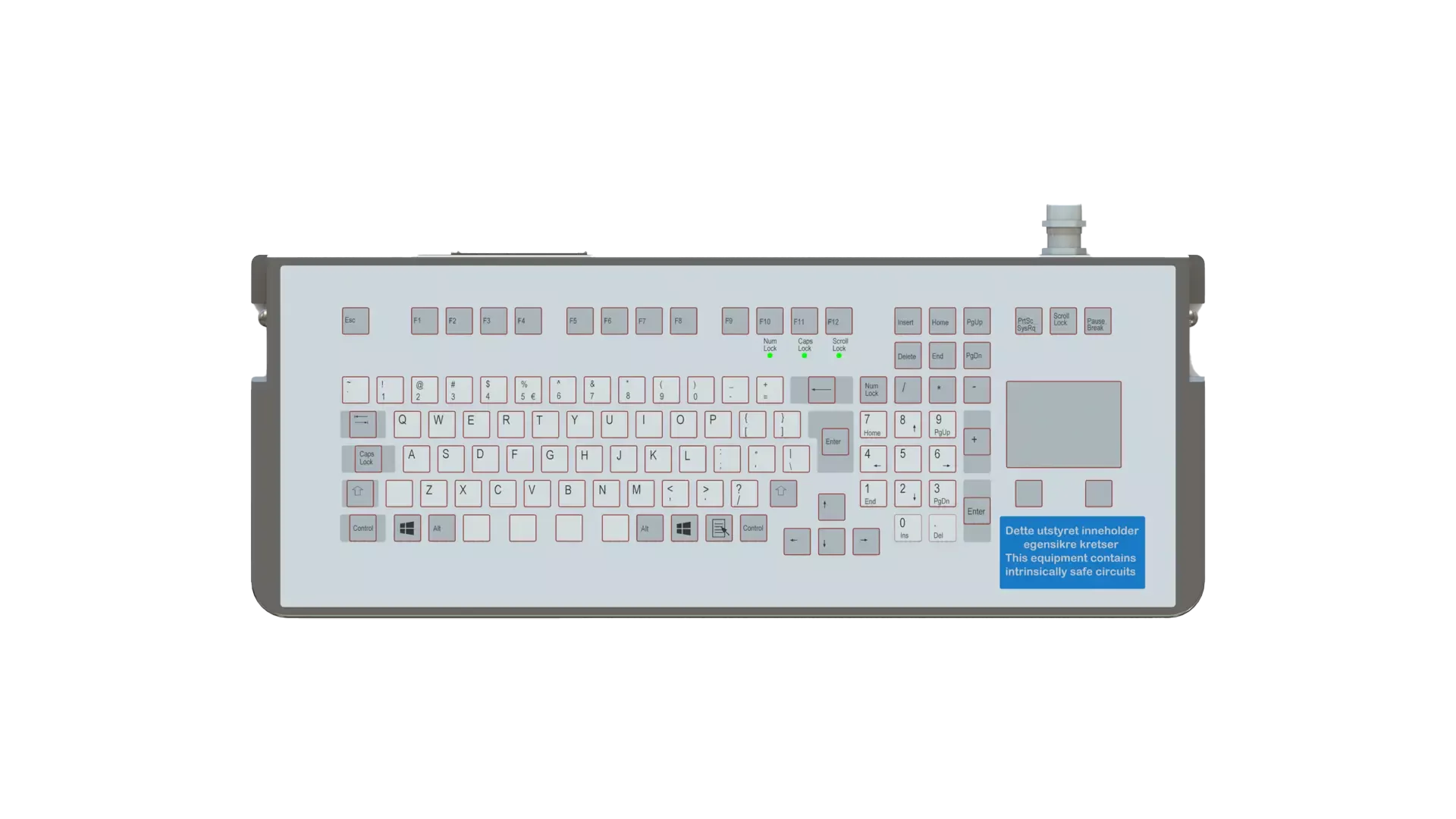

Keyboard type	MF2 (102 keys) keyboard with integrated Touch-Pad (2 keys)
Interface	PC AT, PS/2 compatible
Cable length	1.50m
Language versions	English US-layout, Norwegian German and French, other languages available on request
Ambient temperature	-30°C to +60°C (-22°F to +140°F)
Storage temperature	-40°C to +70°C (-40°F to +158°F)
eNTITY PARAMETERS	Ui = 5.7V Ii = 350mA Pi = 1.2W Ci = 59.4 uF Li = 0

This is a typical Specification; if you have other requirements please Contact Us

Zone 1 & 2
