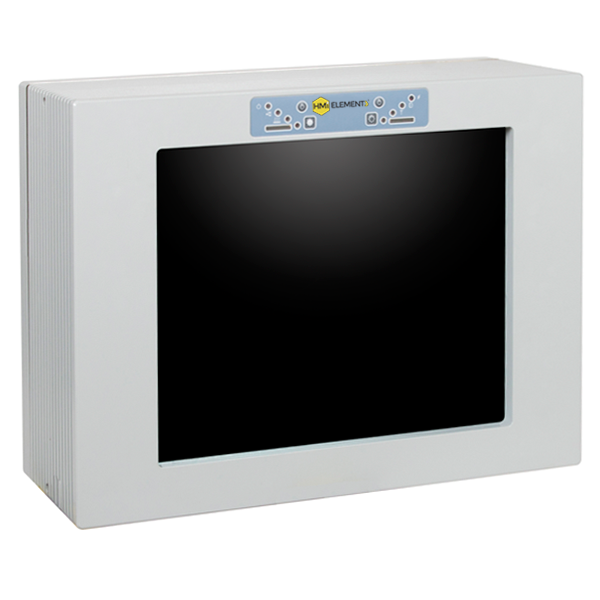

The HMI Elements range of industrial monitors, ideal for CCTV applications, for use in the hazardous area consists of the 800-Z1 and 900-Z1. With no requirement for purging all models are ATEX & CSA certified for use as HMI's in Zones 1 and 2.

Features

  • Accepts DVI-D, VGA or Composite directly driven input signals.
    Extension over CAT5 or Fibre options also available
  • Ideal for CCTV applications
  • Ex d - ease of field maintenance (with appropriate training)
  • Customisable bulkhead connection configuration
  • Optional bulkhead mounted Ex junction boxes
  • Custom solutions available
MONITORS: 800-Z1 900-Z1
Typical Ex Code II 2 G Ex d IIB Gb T6
Display Size 15" 19"
Display Type LCD
Resolution XGA 1024x768 SXGA 1280x1024
Comms Options Accepts DVI-D, VGA or Composite directly driven input signals. Extension over CAT5 and Fibre options are also available
Operating Temp 0°C to +45°C (+32°F to +113°F)
Storage Temp -25°C to +55°C (-13°F to +131°F)
Weight 32kg / 68lbs 44kg / 88lbs
Dimensions 465 x 337 x 160 mm 521 x 390 x 165 mm

This is a typical Specification; if you have other requirements please Contact Us
