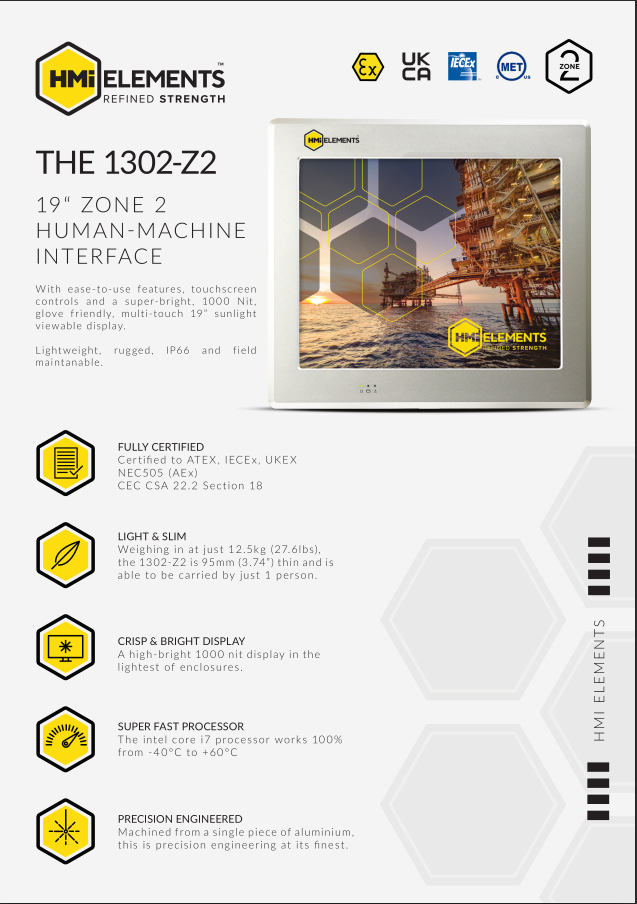

4. 1302-Z2

Lightweight Zone 2 PC approved to IECEx, ATEX, AEx and CSA Standards

A slim and lightweight PC, with a super high-bright 19”, 1000 nit multi-touch glove-friendly touchscreen. As you would expect from HMI Elements it comes certified for use in Class I Div 2, Class I Zone 2 areas with Ethernet and WiFi as standard and a choice of operating voltages.

Features:

  • Glove-friendly Projective Capacitive Touchscreen (PCT) with multi-touch
  • 19" 1000 nit display
  • Wide -40°C to +60°C (-40°F to +140°F) operating temperature range as standard
  • Thin: 3.5" profile. Lightweight: 26.9lbs
  • VESA, yoke and panel mount options
  • Choice of operating voltages
  • Remote telemetry
  • Built-in diagnostics
  • Clean screen mode
  • Ethernet 10/100/1000 Mbit/s and Wi-Fi as standard
  • Ingress protected to IP66/NEMA 4X
  • Shock in accordance with BS EN60068-2-27:2009
  • Vibration in accordance with BS EN60068-2-6:2008
  • Windows 10 Enterprise LTSB, Windows 7 Professional  Embedded Operating System
  • Designed for field maintainability
1302-Z2 :ATOMi7
Product Type PC Workstation
Model No 1302-Z2
typical ex code ATEX/IECExEx nA [ic] IIC T4 Gc (Gc)
Ex tc IIIC T135°C Dc
CSA Class 1 Div 2, AEx Class 1 Zone 2
Display Size 19"
Display Type Sunlight Viewable Glove-Friendly 1000 nit Capacitive LCD Touchscreen
Resolution SXGA; 1280 x 1024, wide viewing angle,  24 bit colour
Processor Options Dual Core Atom 1.86GHz Core i7-3517UE, 1.7GHz  (TPM Compliant)
Operating System Windows 10 Enterprise LTSB, Windows 7 Professional
HDD/SSD Options 64GB SSD (standard)
+ second 64GB SSD (optional)		 64GB SSD (standard) also available 128GB or 256GB SSD
+ second drive 64, 128, 256GB SSD (optional)
RAM 4GB 8GB
+ option to upgrade to 32GB
Comm Options 2 Copper Ethernet port is triple speed (10/100/1000 Mbits/s), Fibre Optic Ethernet, Wi-Fi (802.11 b/g/n)
Keyboard / Mouse / Touchscreen Intrinsically Safe PS/2 Interface
USB 2 x USB ports
Serial Communications One RS232 and one RS422/RS485
Ingress Protection IP66 / NEMA4 and NEMA 4X
Operating Temperature -40°C to +60°C
Storage Temp -40°C to +85°C (-40°F to +185°F)
Weight 26.9Ibs / 12.2kg
Max Dimensions 18.74" x 16.81" x 3.54" / 476mm x 427mm x 90mm
Mounting Options VESA, Yoke, Panel
Shock & Vibration Shock: In accordance with BS EN60068-2-27:2009 Vibration: In accordance with BS. EN60068-2-6:2008

This is a typical Specification; if you have other requirements please Contact Us

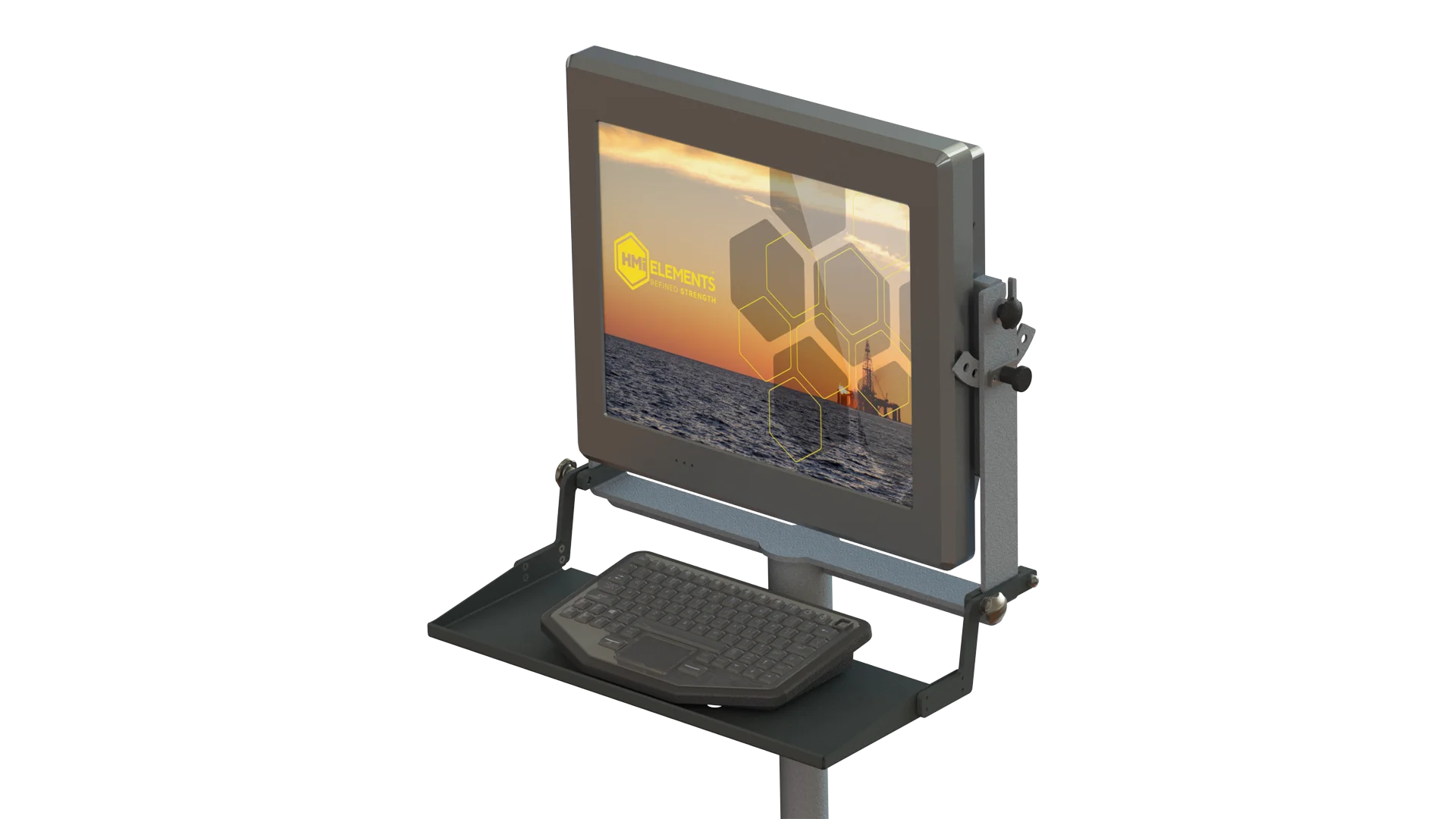

  • 1302 + stand
  • 1302 - Top corner
  • 1302 with stand
  • 1302 - Rear
  • 1302 - Angled Reverse with connector plate
  • 1302 - Cool Box Handle
  • 1302 - Smart Swivel Handle Elevated
  • 1302 - Smart Swivel Handle Resting
  • 1302 - Top corner reverse
  • 1302 - Side View
  • 1302 - Reverse corner
  • 1302 - Connector Plate

1302 Product Video

The latest addition to HMI Elements's range of hazardous area HMIs is a slim and lightweight Thin Client with a super high-bright 19" multi-touch glove-friendly touchscreen. As you would expect from HMI Elements it comes certified for use in Class 1 Div 2, Class 1 Zone 2 areas with Ethernet and WiFi as standard and a choice of operating voltages.
