4. 1900-Sa

The 1900-Sa Wi-Fi Access Point is designed to be operated within a safe area. The Ex i antenna interface can facilitate an antenna being placed in Zone 1 or 2.

  • Lightweight ATEX, IECEx, AEx Zone 1 and Zone 2 Access point
  • Intrinsically safe Output allows use of any suitably certified antenna in the hazardous area
  • No need for heavy, and expensive Ex d solutions
  • Rugged 10/100 RJ45 Ethernet port connector
  • Can be used as Access Point, Bridge or repeater
  • Fully configurable to meet statutory Wi-Fi requirements worldwide
  • Quick and easy set-up
  • Inexpensive way to extend your WiFi network into a hazardous area
  • HMI Elements Antenna available

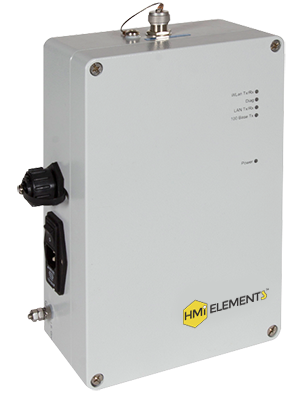

1900-Sa :Main unit installed in the safe area, I.S. output allows antenna in the hazardous area
TYPICAL Ex CODE
(antenna output)		 ATEX and IECEx: Ex II (2) G [Ex ib Gb] IIB
USA: Class I, Zone 1 [AEx ib Gb] IIB
Canada: Class I, Zone 1 [Ex ib Gb] IIB
Power Requirements 100 - 240V, 50/60Hz AC, current consumption 0.3A for 230V AC input, 0.6A for 120V AC input
Operating Temperature 0°C to +50°C (+32°F to +122°F)
Storage Temperature -20°C to +70°C (-4°F to +158°F)
Ingress Protection IP66
Interface Standard IEC, switched, filtered and fused (1A) power input
Industrial strength, shielded RJ45 Ethernet input
Ethernet connection, 10/100 Base Tx. Auto sensing
Maximum transmit output power 20dBm (100mW)
Receiver sensitivity
802.11a/g 54Mbps:   -73dBm
6Mbps:    -92dBm
802.11b 11Mbps:   -90dBm
1Mbps:   -95dBm
Radio Link Tri-band wireless Wi-Fi IEEE 802.11a/b/g/h & Super AG
Radio data rate Up to 108Mbps ( Super AG mode)
Security 4/128 bit WEP, WPA-PSK, WPA2-PSK, IEEE 802.1X (RADIUS) authentication, MAC address filtering, SSID broadcast control
Weight & Size 3.1kg (6.83 lbs)
280(h) x 180(w) x 100(d) mm (11 x 7 x 4 inches)

This is a typical Specification; if you have other requirements please Contact Us
